The new Catalina 340C water generator can produce approximately 53 liters of water per hour and is ideal for use by two to four people on medium-sized yachts. This water maker is equipped with Spectra's Magdrive water inlet pump, which not only operates ultra-quietly, but is also extremely energy-efficient and reliable. The Spectra Connect controller allows you to operate and monitor your water maker from a remote device with added features like fill tank mode, customizable auto-run modes, one-touch sensor calibration, and dashboard display of recommended maintenance intervals and more New features.

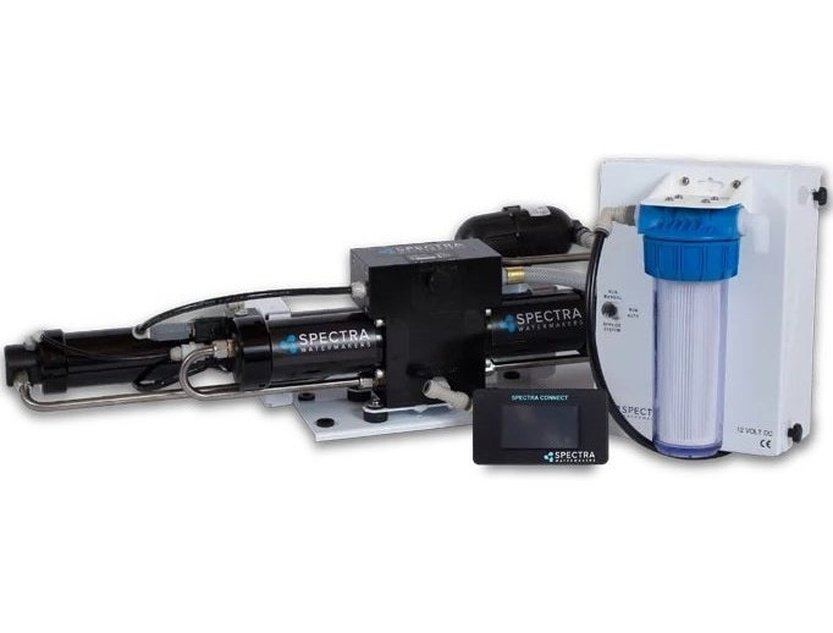

SPECTRA marine water generator Catalina 340C
- Fully automatic operation, equipped with Spectra Connect controller.
- Exquisite modular design.
- Using Spectra's exclusive Clark pump, it is efficient and reliable.
- It consumes low power and can use batteries, solar or wind power to generate electricity.
- High and low speed operation options, power management and water production volume can be customized.
- Extremely silent.
- Commercial grade diaphragm pump with dry run protection.
- Commercial grade continuous duty motor.
- System includes installation kit, handheld water tester and sample valve.
-
Compatible with Z±ION.
marine
Specification
- SPECTRA Marine Water Generator Catalina 340C Specifications
- Weight: 50kg
- Shipping dimensions: 120 x 59 x 46 cm
- Output per hour: 53 liters
- Daily output: 1287 liters
- Power: 12v DC 20A / 24v DC 10A / 48v DC 5A
15 Watts/1 gal, 4 Watts/1 liter
- Pre-filter: 2.5”x10” pleated polyester 5 micron
- Film: 40” x 2.5” High rejection spiral wound polyamide
- Desalination rate: 99.2%
- Temperature range: 2°C ~ 37°C
- pH range: 3 ~ 11 (the pH value of sea water is generally 8)
- Chlorine tolerance: 0 PPM
download
- SPECTRA marine water generator Catalina 340C original manual
- SPECTRA marine water generator Catalina 340C-12V original factory wiring diagram
- SPECTRA Marine Water Generator Catalina 340C-24V Original Wiring Diagram
- SPECTRA marine water generator Catalina 340C original pipeline diagram
- SPECTRA marine water generator Catalina 340C original manual
