The Spectra land-based water generator LB 2800 F is a seawater desalination equipment that uses Spectra Pearson Pump™ technology. This pump technology makes the energy efficiency of this system comparable to that of large industrial seawater desalination plants. It can produce water from various water sources every hour. Produces 285 liters of drinking water. These units can also be equipped with a custom PC board controller for fully automated operation.
The Pearson Pump is a breakthrough in pump design, combining a high-pressure piston pump with a built-in energy recovery system. This can save up to 75% of energy because it recovers the energy of high-pressure salt water that would normally be wasted. Pearson Pump's "Hydraulically Locked" recovery rate enables the system to produce the full rated volume of water from virtually any water source without the user having to make any adjustments to the system.

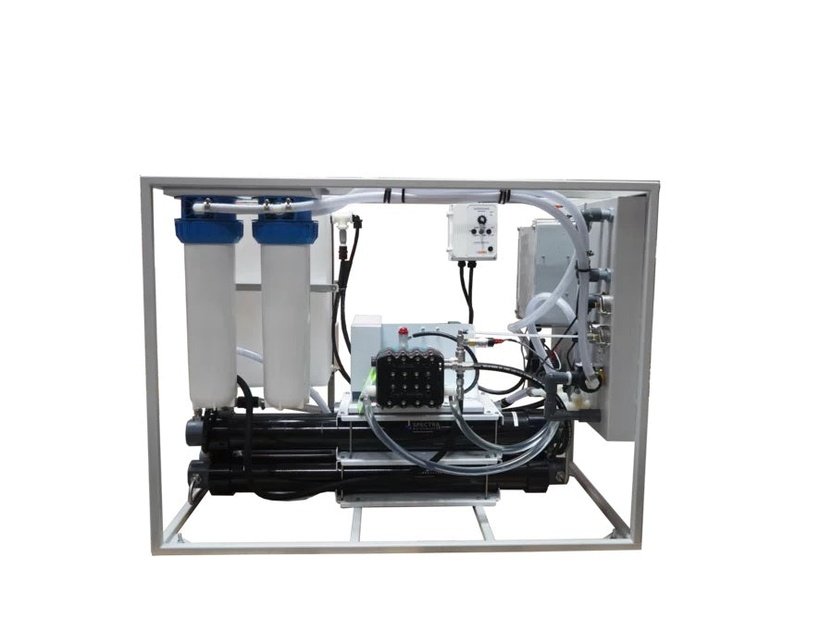

The LB 2800 F is housed in a sturdy stainless steel frame with all components pre-assembled and tested. It also has a special design, which is a built-in permeation flushing water tank, which can be cleaned by turning the valve, which is very convenient.
SPECTRA land-based water generator LB 2800 F
- The Spectra Connect controller automates the entire operation and can be remotely monitored and controlled via LAN.
- It is extremely energy efficient and typically consumes no more than 1,200 watts to process seawater.
- Adopt soft start speed control to avoid sudden increase in current during startup.
- Uses a solid 304 stainless steel frame and is powder coated for greater durability.
-
It has a fixed water recovery ratio, making the operation easier and maximizing the life of the reverse osmosis membrane.
- Due to its high energy efficiency, it is ideally suited for use with wind or solar energy.
- Much quieter than traditional reverse osmosis water making machines.
- Using patented energy recovery design and automatic control technology, it eliminates the need for continuous monitoring.
- The over-pressure structure of the membrane element has been prevented in the system design, and the life span can reach 8-10 years or even longer with correct maintenance.
- Spectra offers first-class customer service and technical support, with technicians in North America and Europe available via Skype, phone or email.
Specification
- SPECTRA land-based water generator LB 2800 F specifications
- Weight: 216kg
- Technology: High Performance Reverse Osmosis (RO)
- Production per hour: 435 liters (115 gallons)
- Daily output: 10599.15 liters (2,800 gallons)
- Recovery rate: 30%
- Water source: fresh water, salt water, sea water
- Desalination rate: 99.5%
- Inlet water flow rate: 24 liters per minute (approximately 6.5 gallons) at 2 bar (approximately 30 psi) pressure
- Voltage: 208-240VAC
- Power: 1200W
- Power consumption per liter of water: 2.5W
- Sound pressure level: 79 decibels (distance 1 meter)
- Temperature range: 2°C ~ 43°C
download
- SPECTRA land-based water generator LB 2800 F original manual
- SPECTRA land-based water generator LB 2800 F original factory wiring diagram
- SPECTRA land-based water generator LB 2800 F original pipeline diagram
