The Cape Horn series has been the equipment of choice for major offshore events such as the Volvo Ocean Race and Clipper Challenge. Known for its reliability and durability, the Cape Horn Extreme 330 is equipped with a parallel diaphragm feed pump, enabling the use of one pump alone for increased efficiency, or two pumps simultaneously for increased output. The Cape Horn 330 is equipped with a remote manual control system. This simple controller can be placed anywhere on the boat and allows you to control basically all functions of the water machine, including the fresh water flush function that can be set at a time. It is ideal for those who are in between full manual operation. and fully automatic water making machines. If you install the Z±ION membrane protection system, you can also keep the water machine maintenance-free for up to 30 days when not in use.

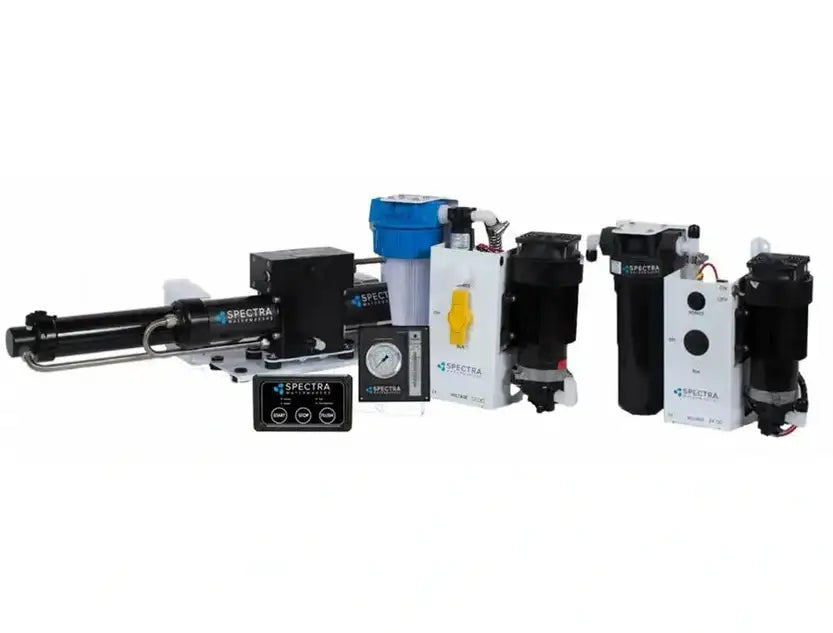

SPECTRA marine water generator Cape Horn Extreme 330 Remote Manual

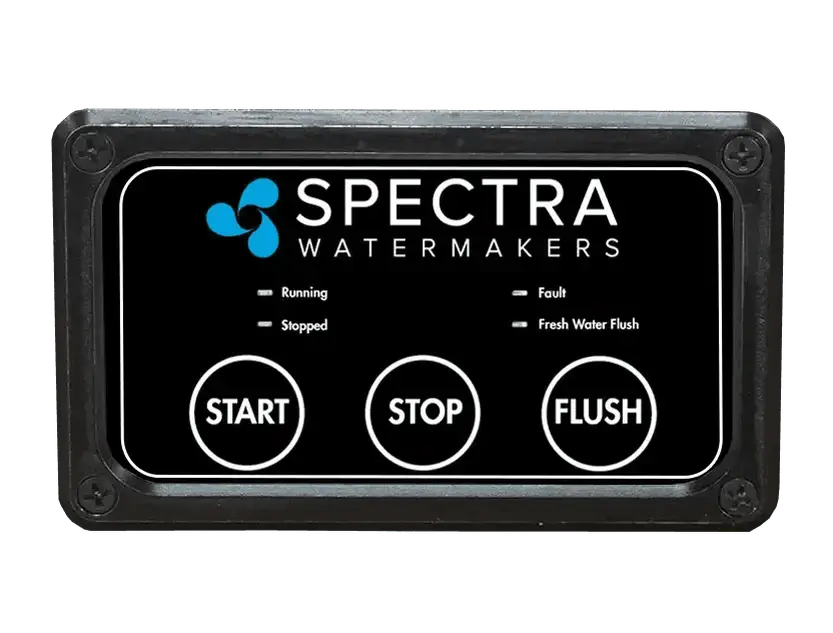

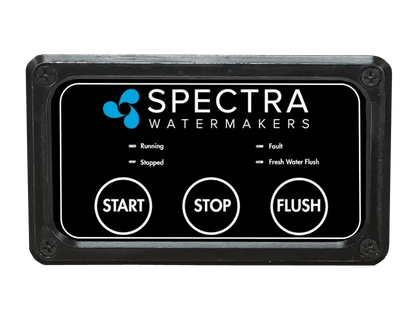

- Remote manual control allows easy operation even if you are some distance away from the water maker.
- Fresh water flush control with programmable time.
- Exquisite modular design.
- Optional "water tank full" automatic shut-off switch.
- High and low speed operation options, power management and water production volume can be customized.
- Using Spectra's exclusive Clark pump, it is efficient and reliable.
- It consumes low power and can use batteries, solar or wind power to generate electricity.
- Extremely silent.
- Commercial grade diaphragm pump with dry run protection.
- System includes installation kit, handheld water tester and sample valve.
-
Compatible with Z±ION.
marine
Specification
- SPECTRA Marine Water Generator Cape Horn Extreme 330 Remote Manual Specifications
- Weight: 30kg
- Shipping dimensions: 120 x 59 x 46 cm
- Output per hour: 56 liters
- Daily output: 1249 liters
- Power: 12v DC 19A / 24v DC 10A
16 Watts/1 gal, 4.2 Watts/1 liter
- Pre-filter: 2.5”x10” pleated polyester 5 micron
- Film: 40” x 2.5” High rejection spiral wound polyamide
- Desalination rate: 99.2%
- Temperature range: 2°C ~ 37°C
- pH range: 3 ~ 11 (the pH value of sea water is generally 8)
- Chlorine tolerance: 0 PPM
