The Spectra land-based water generator LB 10,000 is a desalination equipment utilizing Spectra Pearson Pump™ technology. This pump technology makes the energy efficiency of this system comparable to that of large industrial desalination plants, and can produce water every hour from various water sources. Produced 1,575 liters of drinking water. These units can also be equipped with a custom PC board controller for fully automated operation.
The Pearson Pump is a breakthrough in pump design, combining a high-pressure piston pump with a built-in energy recovery system. This can save up to 75% of energy because it recovers the energy of high-pressure salt water that would normally be wasted. The Pearson Pump's "Hydraulically Locked" recovery rate enables the system to produce the full rated volume of water from virtually any water source without the user having to make any adjustments to the system.
The LB 10,000 is housed in a sturdy stainless steel frame with all components pre-assembled and tested. This unit offers a variety of configuration options and can be customized to meet nearly any application need.

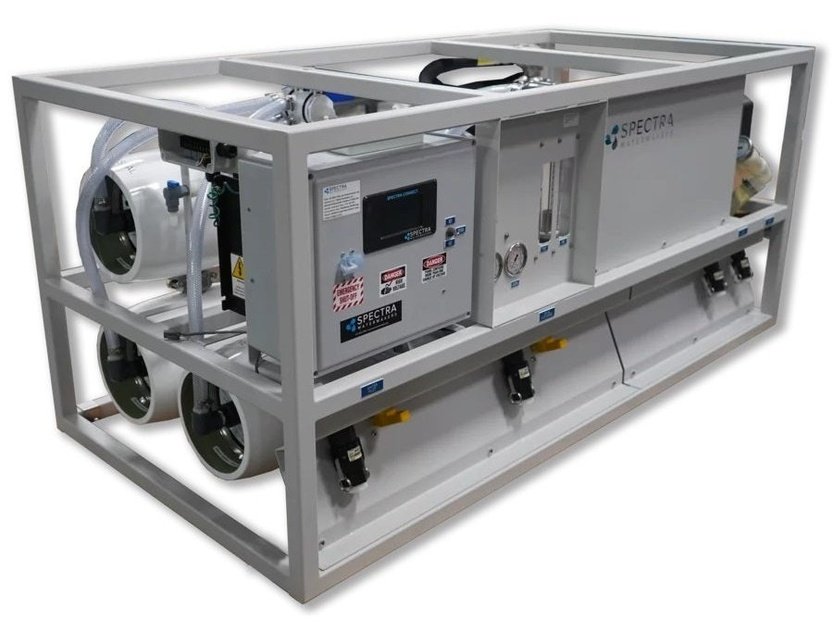

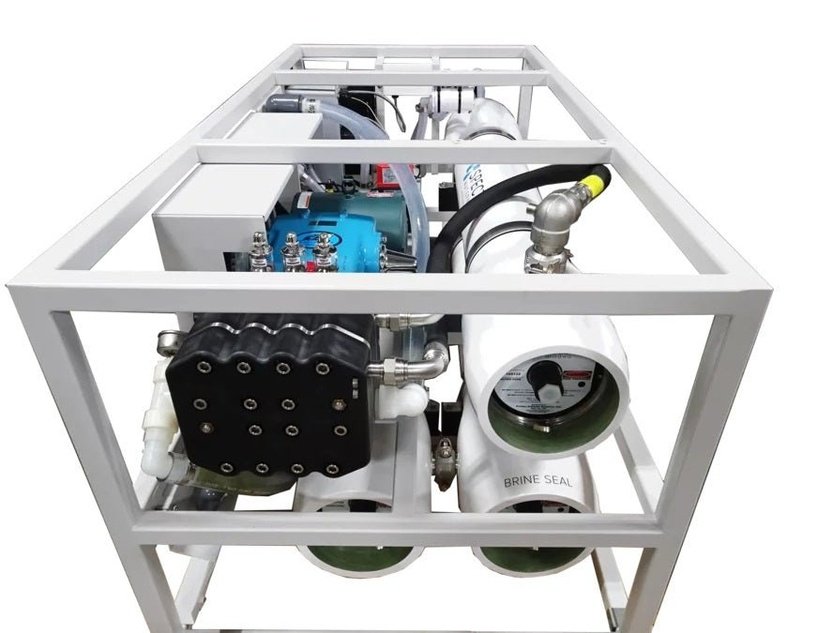

SPECTRA land-based water generator LB 10,000
- The Spectra Connect controller automates the entire operation and can be remotely monitored and controlled via LAN.
- The entire system is ultra-energy-efficient, with the overall power consumption for water purification typically being less than 4 kilowatts.
- Adopt soft start speed control to avoid sudden increase in current during startup.
- Uses a solid 304 stainless steel frame and is powder coated for greater durability.
-
It has a fixed water recovery ratio, making the operation easier and maximizing the life of the reverse osmosis membrane.
- Due to its high energy efficiency, it is ideally suited for use with wind or solar energy.
- Much quieter than traditional reverse osmosis water making machines.
- Using patented energy recovery design and automatic control technology, it eliminates the need for continuous monitoring.
- The over-pressure structure of the membrane element has been prevented in the system design, and the life span can reach 8-10 years or even longer with correct maintenance.
- Spectra offers first-class customer service and technical support, with technicians in North America and Europe accessible via Skype, phone or email.
Specification
- SPECTRA land-based water generator LB 10,000 specifications
- Weight: 725 kg
- Rack size: 178 x 88 x 79 cm
- Technology: High Performance Reverse Osmosis (RO)
- Production per hour: 1575 liters (420 gallons)
- Daily output: 37,853.3 liters (10,000 gallons)
- Recovery rate: 35%
- Water source: fresh water, salt water, sea water
- Desalination rate: 99.5%
- Inlet water flow rate: 75 liters per minute (approximately 20 gallons) at 2 bar (approximately 30 psi) pressure
- Voltage: 208-240VAC
- Power: 4 kW
- Power consumption per liter of water: less than 2.5W
- Sound pressure level: 79 decibels (distance 1 meter)
- Temperature range: 2°C ~ 43°C
