The Newport 400c water maker operates very efficiently, using only 15 watts per gallon of water produced (4 watts per liter), so you can run the system on a small generator, solar, wind, or batteries. The machine's multi-speed capability allows it to operate in high-speed mode for maximum water production or low-speed mode for maximum energy efficiency, making it ideal for onboard power management. When encountering poor incoming water quality, the system automatically switches to low-speed mode to extend the service life of the pre-filter.
With the Spectra Connect controller, you can remotely operate and monitor your water machine, with new features including fill tank mode, customizable auto-run mode, one-touch sensor calibration and recommended maintenance on the dashboard interval.

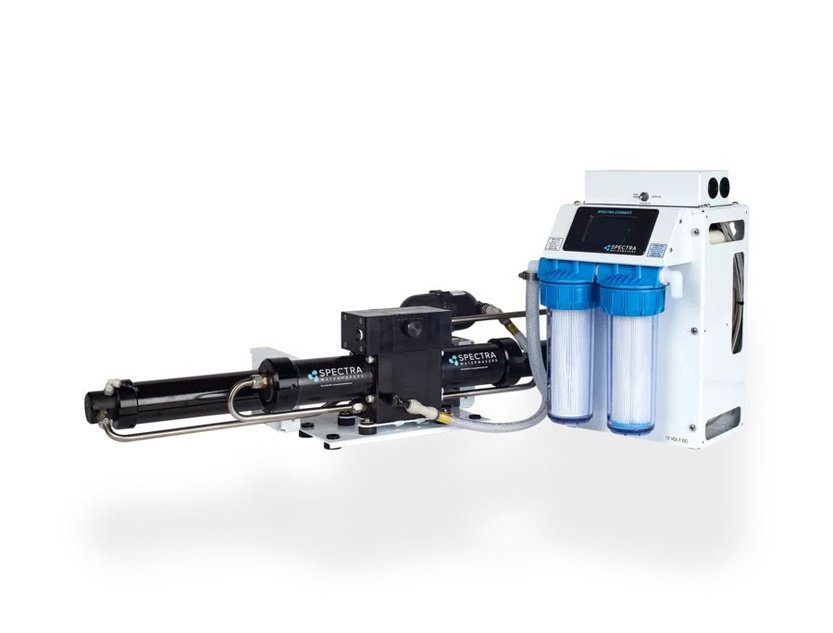

SPECTRA marine water generator Newport 400c
- Fully automated with Spectra Connect controller.
- Exquisite modular design.
- Using Spectra's exclusive Clark pump, it is efficient and reliable.
- High and low speed operation options, power management and water production volume can be customized.
- It consumes low power and can use batteries, solar or wind power to generate electricity.
- Extremely silent.
- Commercial grade diaphragm pump with dry run protection.
- Commercial grade continuous duty motor.
- Manual bypass control with operable diverter valve
- System includes mounting kit and sample valve.
-
Compatible with Z±ION.
marine
Specification
- SPECTRA Marine Water Generator Newport 400c Specifications
- Weight: 50kg
- Shipping dimensions: 120 x 59 x 46 cm
- Output per hour: 64 liters
- Daily output: 1514 liters
- Power: 12v DC 26A / 24v DC 13A / 48v DC 7.5A
18 Watts/1 gal, 4.8 Watts/1 liter
- Pre-filter: 2.5”x10” pleated polyester 5 micron
2.5”x10” pleated polyester 20 micron - Film: 40” x 2.5” High rejection spiral wound polyamide
- Desalination rate: 99.2%
- Temperature range: 2°C ~ 37°C
- pH range: 3 ~ 11 (the pH value of sea water is generally 8)
- Chlorine tolerance: 0 PPM
download
- S PECTRA marine water generator Newport 400c original manual
- SPECTRA Marine Water Generator Newport 400c-12V Original Wiring Diagram
- SPECTRA marine water generator Newport 400c-24V original factory wiring diagram
- SPECTRA marine water generator Newport 400c original pipeline diagram
- SPECTRA Newport 400c original manual
