The Newport 700c water maker supports both DC and AC power supplies. The system uses motor speed control technology to maintain quiet operation when using an inverter or directly connected to a battery pack. Multi-speed capability allows the machine to operate at optimal speed in all conditions. When the incoming water quality is poor, the system will automatically switch to low-speed mode to extend the service life of the pre-filter.
With the Spectra Connect controller, you can remotely operate and monitor your water machine, with new features including fill tank mode, customizable auto-run mode, one-touch sensor calibration and recommended maintenance on the dashboard interval.

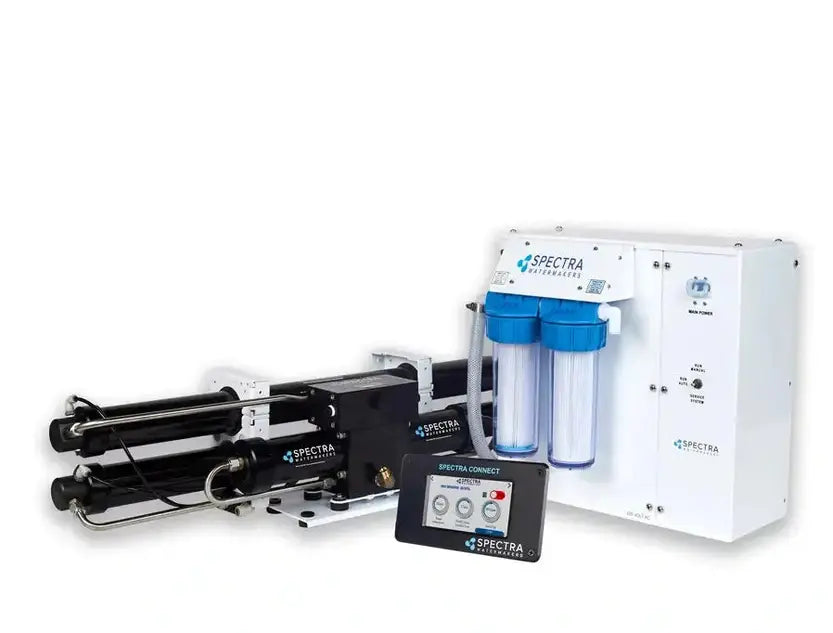

SPECTRA marine water generator Newport 700c
- Fully automated with Spectra Connect controller.
- Exquisite modular design.
- Using Spectra's exclusive Clark pump, it is efficient and reliable.
- High and low speed operation options, power management and water production volume can be customized.
- It consumes low power and can use batteries, solar or wind power to generate electricity.
- Extremely silent.
- Commercial grade diaphragm pump with dry run protection.
- Commercial grade continuous duty motor.
- Manual bypass control with operable diverter valve
- System includes mounting kit and sample valve.
-
Compatible with Z±ION.
marine
Specification
- SPECTRA Marine Water Generator Newport 700c Specifications
- Weight: DC system: 80 kg / AC system: 76 kg
- Shipping dimensions: Box 1: 120 x 59 X 46 cm / Box 2: 81 x 61 x 61 cm
- Output per hour: 110 liters
- Daily output: 2650 liters
- Electricity: 24v DC 24A / 48v DC 12A
110v AC 9A / 220v AC 4.5A
- Pre-filter: 2.5”x10” pleated polyester 5 micron
2.5”x10” pleated polyester 20 micron - Film: 40” x 2.5” High rejection spiral wound polyamide x 2
- Desalination rate: 99.2%
- Temperature range: 2°C ~ 37°C
- pH range: 3 ~ 11 (the pH value of sea water is generally 8)
- Chlorine tolerance: 0 PPM
download
- SPECTRA marine water generator Newport 700c original manual
- SPECTRA Marine Water Generator Newport 700c-220V Original Wiring Diagram
- SPECTRA Marine Water Generator Newport 700c-24V Original Wiring Diagram
- SPECTRA marine water generator Newport 700c original pipeline diagram
- SPECTRA marine water generator Newport 700c original manual
